Our Products
Horizontal Shaft Impactor - HSI
Features
- SSD M – Sand Machine HSI (Horizontal Shaft Impactor Crusher) is specially designed to produce M – Sand from (-) 40 mm size aggregates.
- Its productivity is high consuming less power. Top housings can be opened for maintenance through a hydraulic system.
- The hydraulic system is inbuilt into the machine.
- The rotor is dynamically balanced to eliminate vibrations and stresses. Rotor discs are strengthened and covered from wear plates.
- Body Internal hull is fully layered with wear resisting lining plates. The blow bars, impact plates and liner plates are of heavy wear resistant special alloy steel.
- Blow bars can be reversed when top side is worn-out.
- Wear status can be seen through inspection door on the sides. Very easier to operate and maintain.
TECHNICAL SPECIFICATIONS
| Model No | Rotor Diameter (mm) | Feed Size (mm) | Power KW (HP) | Rotor Speed (RPM) | Capacity (TPH) |
|---|---|---|---|---|---|
|
HSI - 680 |
1000 |
< 40 |
55 (75) |
1100 |
50 - 75 |
Vertical Shaft Impactor - VSI
Features
- SSD M – Sand Machine VSI (Vertical Shaft Impactor Crusher) is specially designed to produce M – Sand, with a unique rock-on-rock crushing and rock-on-steel principle.
- No wear parts are used to directly crush the rock. Rotor is dynamically balanced.
- Low wear cost and superior cubical shape.
TECHNICAL SPECIFICATIONS
| Model No | Rotor Diameter (mm) | Feed Size (mm) | Power KW (HP) | Rotor Speed (RPM) | Capacity (TPH) |
|---|---|---|---|---|---|
|
VSI - 720 |
720 |
< 20 |
110 (150) |
1350 |
90 - 120 |

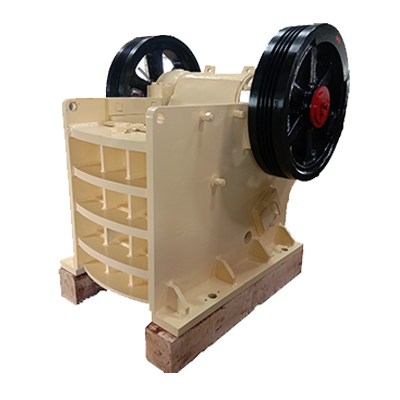

Jaw Crushers - Single Toggle
Features
- SSD Jaw Crushers are of Single Toggle Mechanism with either oil lubricated or Grease lubricated Model.
- Single Toggle Mechanism gives high Productivity.
- Balanced heavy double flywheel is used in this machine.
- Heavily built fabricated body is stress relieved.
- Jaw stock is made of Steel Casting and precisely machined.
- Eccentric Shaft is made out of Forged, Ultrasonically tested and Heat Treatment processed before Grinding.
- The serrated Jaw plates of multi optional design to give the designated output.
TECHNICAL SPECIFICATIONS
Primary and Secondary Single Toggle Jaw Crushers
| Crusher Size | Feed Size | Power KW (HP) | Crusher Speed (RPM) | Capacity (TPH) | Weight (TON) |
|---|---|---|---|---|---|
|
24" x 16" |
Upto 14" |
37 (50) |
290 |
25 - 50 |
7 |
|
30" x 8" |
Upto 6" |
55 (75) |
320 |
35 - 45 |
8 |
|
30" x 24" |
Upto 20" |
55 (75) |
290 |
40 - 90 |
13 |
Jaw Crushers
Features
- We manufacturing primary and secondary crushers.
- SSD Jaw Crushers are of double toggle Mechanism with oil lubricated Model.
- Double Toggle Mechanism Minimizes Wear and reduces Power Consumption.
- A heavy single balanced flywheel transmits the power to this machine.
- The serrated jaw plates of multi optional design to give the designated output.
- Heavily built fabricated. body and jaw stocks are stress relieved.
- The hinge pin shaft is uniquely provided with spherical roller bearings on either side.
TECHNICAL SPECIFICATIONS
Primary Jaw Crushers
| Crusher Size | Feed Size | Power KW (HP) | Crusher Speed (RPM) | Capacity (TPH) | Weight (TON) |
|---|---|---|---|---|---|
|
24" x 14" |
Upto 12" |
37 (50) |
320 |
50 - 60 |
6.5 |
|
30" x 15" |
Upto 13" |
37 (50) |
320 |
60 - 75 |
8.5 |
|
30" x 24" |
Upto 21" |
55 (75) |
320 |
75 - 100 |
15 |
|
36" x 30" |
Upto 27" |
75 (100) |
300 |
100 - 150 |
24.5 |
Secondary Jaw Crushers
| Crusher Size | Feed Size | Power KW (HP) | Crusher Speed (RPM) | Capacity (TPH) | Weight (TON) |
|---|---|---|---|---|---|
|
20" x 12" |
Upto 9" |
30 (40) |
320 |
20 - 25 |
5.5 |
|
30" x 8" |
Upto 6" |
37 (50) |
320 |
20 - 25 |
6 |
|
30" x 10" |
Upto 8" |
45 (60) |
320 |
25 - 30 |
7 |
|
48" x 9" |
Upto 6" |
45 (60) |
320 |
40 - 50 |
14.5 |
Vibrating Screen
Features
- SSD Vibrating screens are efficient screening of crushed materials.
- The screens are offered in multiple decks.
TECHNICAL SPECIFICATIONS
| Model No | Screen Size | No of Deck | Screen Area (sq ft) | Power (HP) |
|---|---|---|---|---|
|
VIB - 840 |
8" x 4" |
2 - 3 |
32 |
7.5 - 10 |
|
VIB - 124 |
12" x 4" |
2 - 4 |
48 |
10 - 15 |
|
VIB - 125 |
12" x 5" |
2 - 4 |
60 |
10 - 15 |
|
VIB - 165 |
16" x 5" |
2 - 4 |
80 |
15 - 20 |

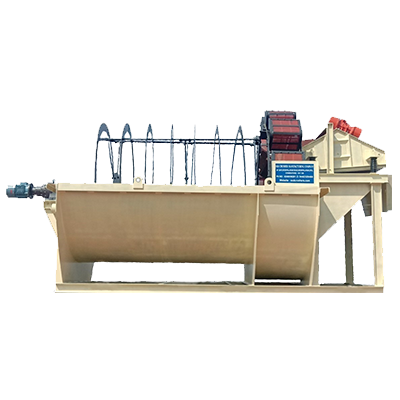

Sand Washer with Dewatering Screen
Features
- SSD sand washer with dewatering screens adopting advanced technology for high efficient sand washing.
- It is improve the sand quality by washout the tiny stone powder and impurities mixed in the sand.
- Manufactured sand (M – Sand) and plastering sand (P – Sand) can be separately achieved on the same time.
- Dewatering screen utilize two high frequency motor to ensure maximum dewatering of the sand product.
TECHNICAL SPECIFICATIONS
| Model No | Drive Motor Power KW (HP) | Vibrating Motor Power KW (HP) | Rotor Speed (RPM) | Feed Size (mm) | Capacity (TPH) |
|---|---|---|---|---|---|
|
SW - 100 |
5.5 (7.5) |
2 x 2.2 (3) |
3.3 |
< 5 |
100 |

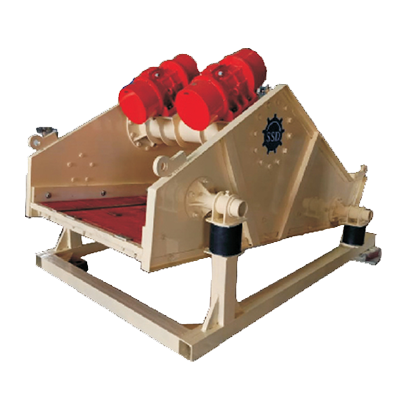

Dewatering Screen
Features
- SSD dewatering screen utilize two high frequency vibrating motors to ensure.
- Maximum dewatering of the sand product the use of modular polyurethane panels ensures quick and easy replacement when necessary.
- Reduce the loss of quality sand and reduce maintenance cost.
TECHNICAL SPECIFICATIONS
| Model No | Screen Size | Vibrating Motor Power KW (HP) | Feed Size (mm) | Capacity (TPH) |
|---|---|---|---|---|
|
DS - 54 |
5" x 4" |
2 x 1.5 (2) |
< 5 |
30 |
|
DS - 64 |
6" x 4" |
2 x 2.2 (3) |
< 5 |
40 |
|
DS - 84 |
8" x 4" |
2 x 2.2 (3) |
< 5 |
50 |

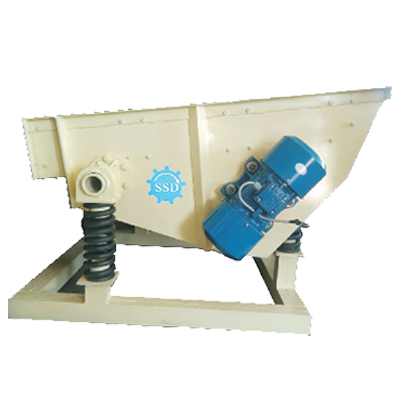

Vibratory Feeder
Features
- SSD Vibratory Feeders are specially designed to our crusher for feed to the full width of the crusher mouth opening.
- Two high frequency vibrating motor is used to control the uniform flow and volume of material.
TECHNICAL SPECIFICATIONS
| Model No | Length (mm) | Width (mm) | Vibrating Motor Power KW (HP) | Feed Size (mm) | Capacity (TPH) |
|---|---|---|---|---|---|
|
VF - 680 |
1200 |
680 |
2 x 0.75 (1) |
< 40 |
50 - 100 |

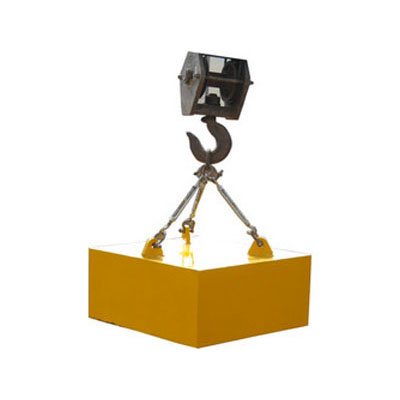

Crusher Magnet
Features
- SSD Crusher magnet is specially designed for crushers particularly for M – Sand machines.
- SSD Magnet can be used to avoid accident by cause of iron material fed into the crushing chamfer when crusher running.
- It is permanent magnet set with holding arrangements.
- Easily it can be hanged on top of the crushed conveyor.
TECHNICAL SPECIFICATIONS
| Length (mm) | Width (mm) | Height (mm) | Weight (mm) | Clearance Between Magnet & Conveyor (mm) |
|---|---|---|---|---|
|
500 |
500 |
250 |
270 |
100 |
